"SEBCO" BOTTOM BRACKET PARTS/JEUX DE PEDALIER/EJE-TAZA CENTRO

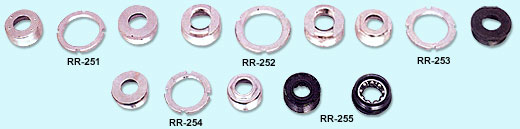

SEBCO BB Cups

RR-251 : "SEBCO" BB Cups (Phillips type)
34.8mm x 24 TPI BSCY RH & LH threads
35.5mm x 24 TPI BSCY RH & LH threads
36.0mm x 24 TPI BSCY RH & LH threads
Finish : Black/ZP/BCP
RR-252 : "SEBCO" BB Cups (Raliegh Type)
34.8 (1.370") x 26TPI RH & LH
34.8 (1.370") x 24TPI RH & LH
Finish : Black/ZP/BCP
RR-253 : "SEBCO" BB Cups (French Type)
35mm x 1mm pitch ISO metric RH & LH threads
Finish : Black/BCP
RR-254 : "SEBCO" BB Cups (Italian Type/Hex)
36mm x 24TPI WW RH & LH
35mm x 24TPI BSCY RH & LH
34.8mm x 24TPI RH & LH
35 mm x 1mm Pitch metric RH & LH
Finish : Black/ZP/BCP
RR 255: "SEBCO" BB Cup (Low rofile)
Steel cups , Thread 1.37" x 24T

  SEBCO BB Axle Cottered

RR-261, 262, 263 : BB Axle Cottered
Made from low carbon steel, case hardened and machined to perfect sizes. Available in all sizes and in any finish  Black/ZP/BCP

Model Left A Centre B Right L Total Length Crank Pin Diameter
2C 37 54 46 137
A8 34.5 61.5 45 141
SLR 36 55 47 138 Min. 15.65
Y-3 40 52 49 141 Max 15.65
Y-4 34 52 44 130
Y-5 36 54 46 136
Y-15 34 54 42 130
Y-16 36 57 46 139
Y-18 37 51 50 138
Mini 51 56 51 158
Mexican 45 55 45 145
69 45 57 45 147
French I 37 56 44 137 Min15.85
French II 35 58 45 138 Max 15.95
Italian 46.5 58 46.5 151

  SEBCO BB Axle Cotterless

RR-264,265 : BB Axle Cotterless Type
Available in black Finish

Bracket
Width

Left
A

Centre
B

Right
C

Total Length
L

70 32 55 35 122
70 35 55 37.5 127.5
70 35 55 39 129
70 35 55 40.5 130.5
70 35 55 42 132
37 58 40 135
68 35 56 36 126
37 56 37 130

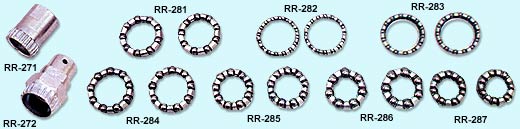

SEBCO BB Cup Openers and BB Fittings

RR-271, 272 : "SEBCO" BB Cup Opener

RR-281, 282, 283, 284, 285, 286, 287
Ball retainers for OPC, fork fittings, B.B. Cups, Hubs & Pedals.



BackNext
